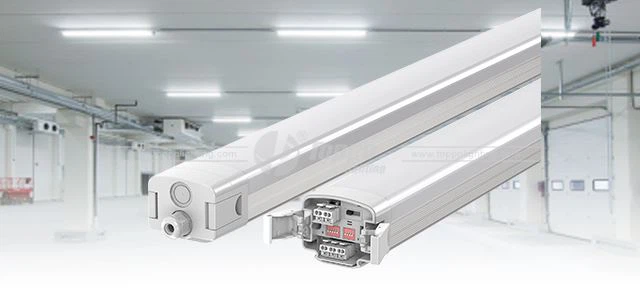

Multiple Functional Endcap LED Tri-proof Light
Mar 07, 2022
ایک پیغام چھوڑیں۔
The LED tri-proof light refers to: waterproof, dust-proof, and anti-collision. Special anti-oxidation and anti-collision materials and silicone sealing rings are used to achieve the protection requirements of lamps. This lamp has anti-impact, waterproof and anti-impact treatments on the circuit control board. In view of the weak sealing and heat dissipation capability of the electrical box, the special working circuit for the smart temperature-controlled three-proof lamp and the aluminum shell heat dissipation, which reduces the working temperature of the power inverter. Strong electrical isolation protection circuit, double insulation treatment of connectors, to ensure the safety and reliability of the circuit. According to the actual working environment of the tri-proof lamp, the surface of the lamp protective box is treated to prevent the entry of dust and moisture.
 | There is a LED Tri-proof Light from Toppo lighting, The light have below features. • Features > Quick-snap end-caps for easy installation > Single or Double wiring > IP 65 / IK10 Approval > Multiple Link with double wiring > Patent aluminum case as heatsink > 5 years warranty |
 | The other options as blow: • Options >Wiring: Single or Double > CRI : Ra>80 or Ra>90 > Function : ON-OFF / 1-10V dimming / MS / DALI > Lumen Efficacy : 100LM/W , 125LM/W ,140LM/W > Emergency: 3hours with 10 percent Lumen > Package: Standard pack OR Color Box |
 | • Application > Replacement for fluorescent NCF , > Warehouses , Factories, Car parks , Sports facilities, > Sports facilities, Outdoor Indoor Locations. |
Main Technical Specification
Item | Specification / Data | Item | Specification / Data |
Color Index | Ra>80 , R9>0 | Power factor | >0.95 |
Beam Angle | 120 degree | Efficiency in | >93 percent |
Color Temperature | Single Color or Tri-Color | Energy efficiency Class | D |
Dimming Function | F1:On-off F2:On-off plus EMG F3:On-off plus MS F4:On-off plus EMG plus MS | Standard deviation of color matching | <> |
MS Function | 0 percent Or 10 percent Brightness on Micro-wave sensor | Starting Time | <> |
EM time | 3H Emergency | Warm-up time to 60 percent | <> |
LED current | Constant 50mA | Rated nominal Lifetime | >50,000 hours |
Input Voltage | AC200240V/50Hz | Lumen Maintenance at e.o.l. | >80 percent |
Working Voltage | Constant DC36-42V | LED Device Lifetime | L80/B10@50,000 hours |
Temperature | Operation:-15 degree plus 50 degree ,Storage:-25 degree plus 55 degree | Switching Cycle before Failure | >100,000 times |
Protection Class | IP65/IK10 | Color consistency in level | Max. 6 SDCM |
Warranty | 5 years | THD | <> |
